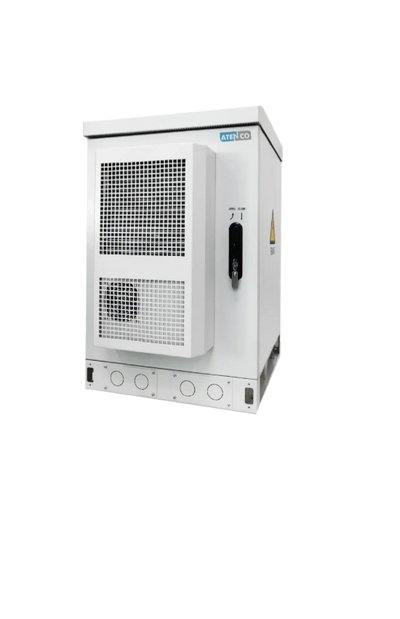

ATENCO PowTerra Series 1-3kVA Outdoor UPS

ATENCO PowTerra is an outdoor, air-conditioned, double-conversion online UPS that delivers pure sine-wave power at constant frequency and voltage without interruption.

Its cabinet adds heat-insulation with dust-, damp- and waterproof protection, and uses a four-layer layout for fans, UPS + lightning protection + maintenance switch, power distribution, and batteries.

Thermal management is integrated: fans stop below 40 °C to extend service life, and a heater starts below 0 °C for cold conditions. Electrical tolerances are wide—input 115–295 VAC with voltage compensation and 60 Hz—plus, PFC technology and a standard bypass mode.

Designed for deployment at urban intersections, remote roadside cabinets, mountain sites, and other harsh locations—including high temperatures (up to +50 °C), low temperatures (down to −10 °C), severe dust, moisture, rain and mist exposure, and areas with very poor power quality (sustained input above 260 V or below 160 V, with abnormal frequency.

• ATENCO PowTerra Series is a high-performance, integrated outdoor online UPS designed for wireless communication systems—especially microcell/base-station and edge-network sites.
• It delivers continuous, double-conversion protection in a rugged, field-ready design that balances advanced engineering with practical deployment.

• Outdoor intelligent high-frequency online UPS delivering continuous pure-sine AC for communication and network equipment in the field.
• Double-conversion architecture with high-temperature and low-temperature tolerance; IP55 sealed cabinet for outdoor environments.
• Wide input window: voltage −45% to +35% of rated and frequency ±10% of rated, suitable for remote areas with severely unstable grids.

• Microprocessor-controlled SPWM inverter regulates output precisely and reacts quickly to grid/load changes.
• Simplified control architecture (fewer components and loops) improves stability and reduces failure points—raising overall UPS reliability.

• IP55/IP56 dust- and water-resistant enclosure for outdoor deployment.
• Galvanized steel construction for strong corrosion resistance.
• Sun protection, thermal insulation, and roof ventilation to limit solar gain and stabilize internal temperature.
• Outdoor-grade powder coating with high-temperature and corrosion resistance.
