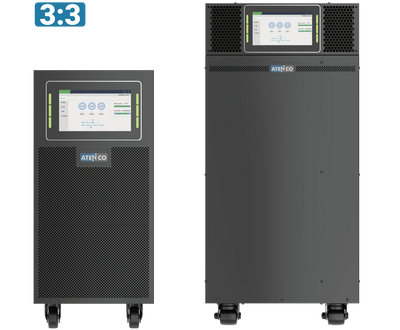

TM33 Tower UPS Series | 10–200 kVA/kW
Introduction
ATENCO TM33 series features a high-efficiency three-phase online
double-conversion tower design covering 10–200 kVA. Built in full DSP control and
3-level IGBT topology, it delivers low THDi and high efficiency for 24/7 critical loads,
sustaining 110% for 60 min, 125% for 10 min, and 150% for 1 min. Reliability is
reinforced with conformal-coated PCBs, an isolated clean compartment for
dust-sensitive parts, and adaptive fan control that keeps key components below
100 °C at full load, with optional IoT monitoring (SNMP/Modbus/cloud) available.
High Efficiency
- Clean input: PF up to 0.99 and input THDi ≤ 2% at full load—less upstream distortion and lower generator stress.
- Lower losses: Double-conversion efficiency up to 97% in normal mode.
- Save more when mains are stable: ECO mode up to 99%.
- Faster commissioning: Self-aging test mode delivers full-power testing without external load banks, temp cabling, or extra breakers—saving time and energy.
Flexible Design
- Selectable I/O: 3/3, 3/1, or 1/1 with common-input wiring.
- Single power-board architecture for easier service and lower MTTR.
- Parallel-ready: built-in slot supports up to 4 units in parallel.
- External battery support on standard models for extended backup.
- Integrated protection: four breakers—input, output, bypass, manual bypass—with an additional battery breaker.
- Cold start from battery when mains is unavailable.
- Optional internal battery models: space inside the UPS for 20 / 40 / 80 pcs packs to extend runtime without external cabinets.
Advanced Charging Technology
- Multi-stage Boost/Float charging shortens recharge time and extends battery life.
- Wide DC window: configurable ±120–±300 Vdc (supports 20–50 battery blocks on 10 kVA models).
- High-capacity charger up to 50% of Pout for rapid recovery and longer autonomy options.
- Chemistry-flexible: compatible with lithium-ion (LFP) and VRLA.
- Reverse-polarity protection guards against installation errors.
Warranty
Warranty is 2 Years
TM33 Core Features
HIGH RELIABILITY
- 3-level IGBT design boosts efficiency and lowers THDi for cleaner power to sensitive loads.
- Overload endurance: 110% / 60 min, 125% / 10 min, 150% / 1 min—rides through inrush/spikes without switching to bypass.
- Thermal architecture keeps critical components < 100 °C at full load, extending service life.
- Conformal-coated PCBs (standard) resist humidity, dust, and corrosion for dependable operation in harsh sites.
Intelligent Display
- 7” color touchscreen + LED status, field-replaceable display module.
- Up to 100,000 event logs; rear physical ports behind the panel for quick access and service.
- Multilingual UI (EN/ES/IT/FR/RU…).
- BMS integration for real-time lithium status; optional IoT for cloud monitoring.
- Rear I/O: USB, Ethernet, RS-485/communication port, EPO, SMS/SIM port, TF (microSD) slot.
SMART PROTECTION COOLING
- Source-Share Mode: Grid and battery drive the inverter together, keeping the UPS online when grid capacity is weak or unstable.

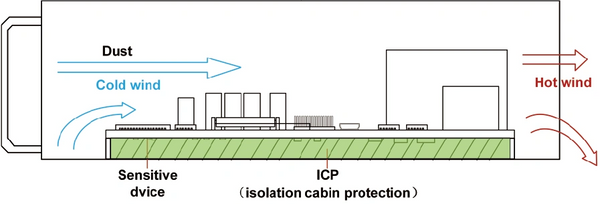

- Isolation Cabinet Protection (ICP): A sealed, independent compartment shields dust-sensitive electronics—higher reliability in harsh or dusty sites.
- Adaptive Fan Control: Variable speed by temperature and load to cut noise, save energy, and extend fan life.
Convenient Management
- Multi-I/O built in: RS-232, USB, RS-485, Ethernet, and dry contacts—ready for DCIM/BMS/SCADA.

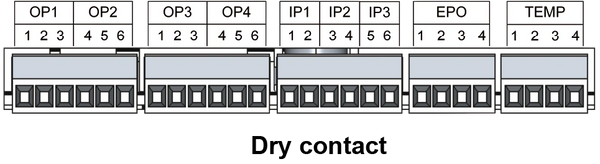

- Programmable dry contacts: 3 inputs + 4 outputs for alarms and remote actions.
- Option slot: accepts AS400 / RS-485 / SNMP / Wi-Fi cards for easy expansion.
- Fleet visibility: SNMP/MIB for centralized monitoring of multiple UPS units.
